Features
.png)
Security Hardware
Concealed Drainage
Oops! Something went wrong while submitting the form.
.png)
Premium+

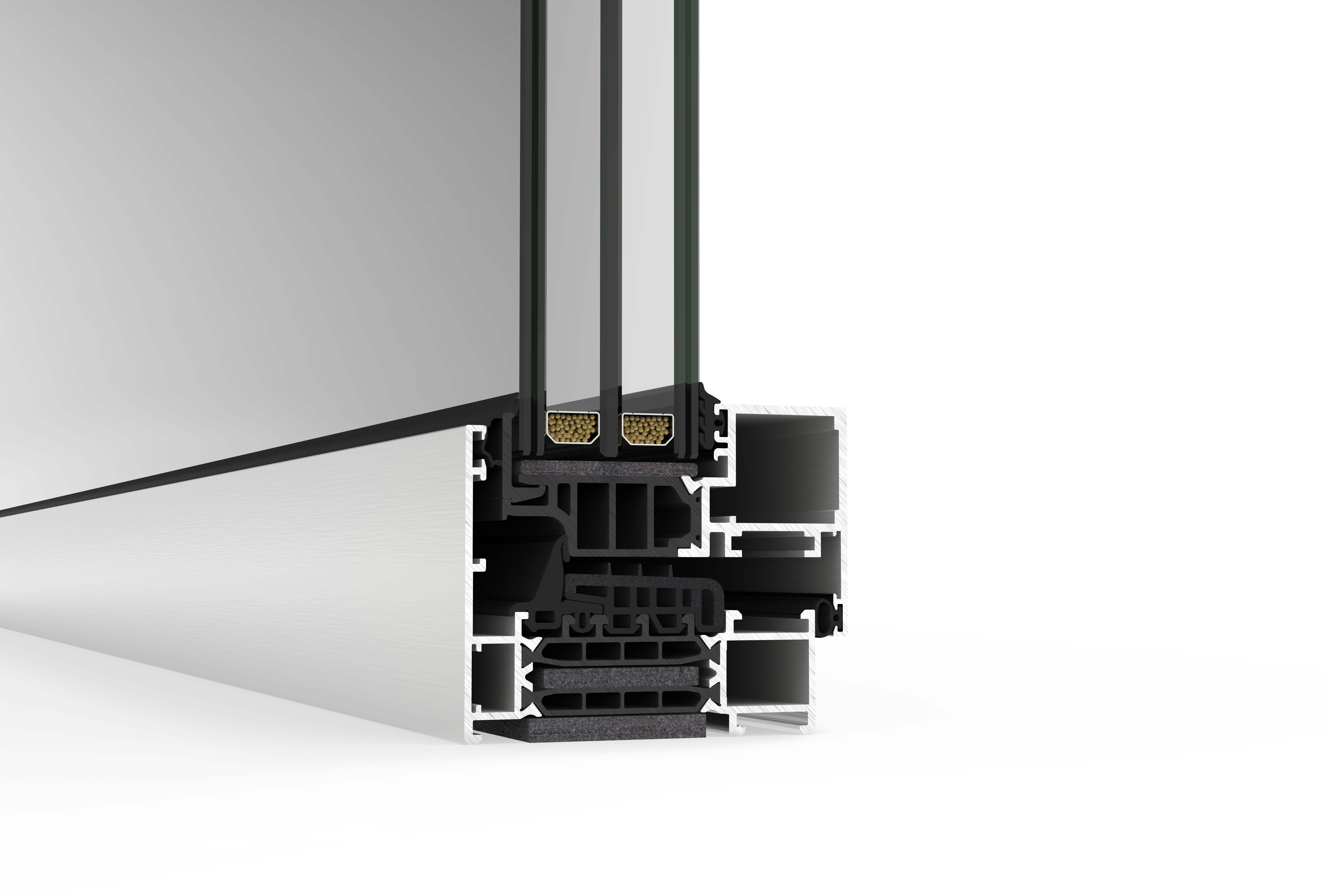

Aluframe 80 Hidden Sash
Elegant design with straight aesthetic in which the sash is concealed behind the frame, thus maximizing the glazed surface and the entry of light. In addition, it offers a great thermal and acoustic performance prompted by the 1 3/4" (45 mm) thermal break and a glazing capacity of up to 2" (50 mm) that allows the installation of triple glazing.
Aluframe 80 Hidden Sash
Now that you’ve selected your product, tailor each detail to your unique design
preferences. We’ll guide you every step of the way and help you make informed decisions so that your window or door looks and functions its best!
Customize To Your Style
Colors & Finishes
Choose from five standard AAMA 2604 / 2605 colors or upgrade to a palette of 20 premium colors. Looking for something custom? We can color-match any shade.
.png)
System Details
Details
Maximum glazing
2" (50mm)
Profile Section Size
Frame: 3 1/8" (80 mm) / Sash: 3 1/8" (80 mm)
Profile thickness
5/64" (1.9 mm)
Thermal Break (Polyamide)
1 3/4" (45 mm)
Maximum dimensions/sash (Standard solution)
Width (L) = 51"" (1300 mm) Height (H) = 94 1/2"" (2400 mm)
Maximum dimensions/sash (HD Hardware - hinged)
Width (L) = 47"" (1200 mm) Height (H) = 137 3/4"" (3500 mm)
Maximum weight/sash
352 lb (160 kg)
Technical Data
Transmittance
Uw ≥ 0.14 Btu/h·ft2·°F (0.8 W/m²K)
Acoustic insulation
Rw up to 46 dB
Other
Hinged Windows and Doors
Aluframe Casement
Aluframe Alu-Steel
Aluframe 80 Industrial Passivhous
Aluframe 60
Maximum Panel Height
168"
Maximum Panel Width
192"
Stile
3 ¹⁵
Style
yes
Aluframe 70 Hidden Sash
Aluframe 80 Industrial
Aluframe 80 Hidden Sash
Aluframe 70 Industrial
Aluframe 60 Hidden Sash
Aluframe 3500
Aluframe 3000
