.png)
Premium+

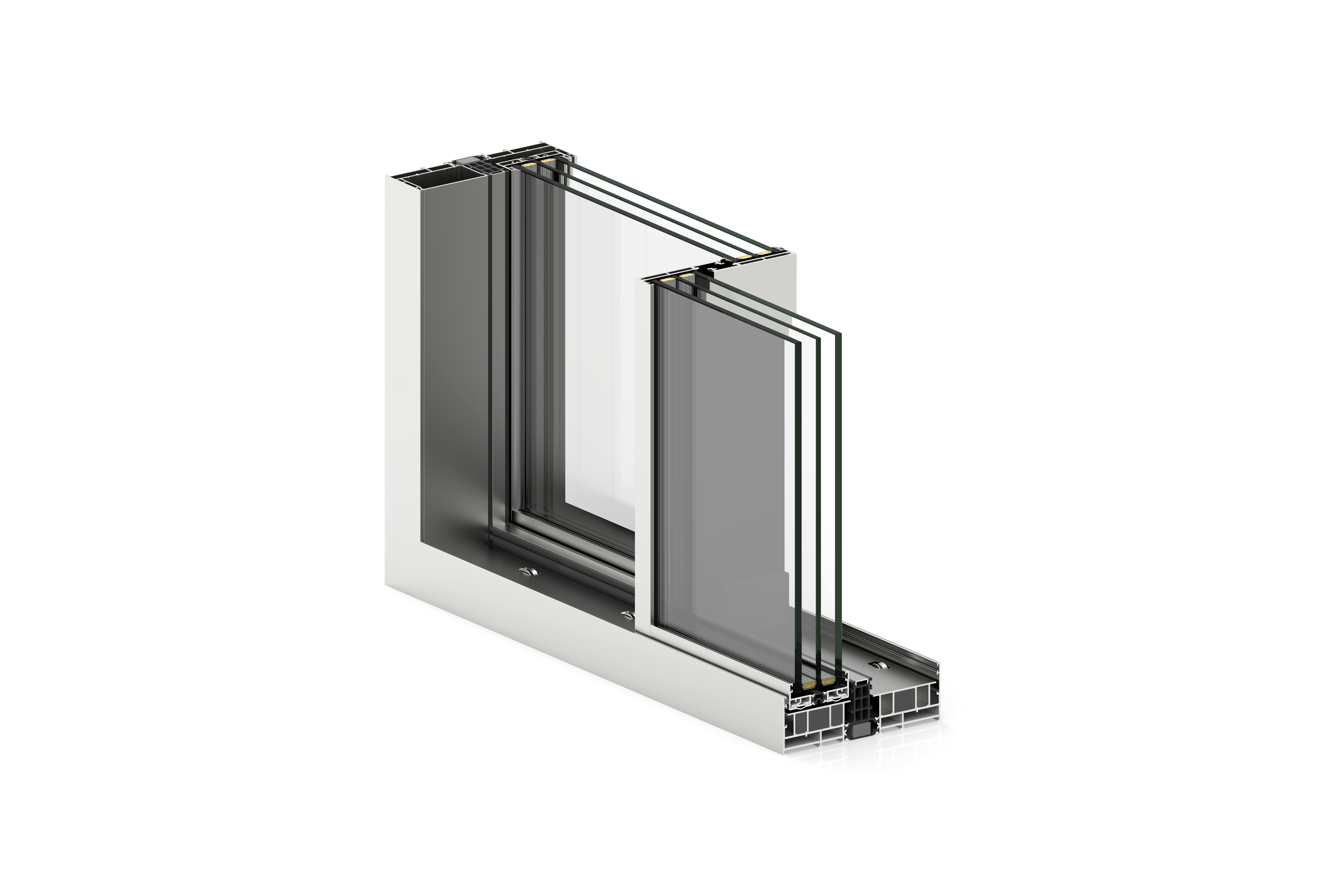

Aluframe Vision Plus
The greatness of minimalism is reflected in this sliding system of large dimensions with sashes of up to 157 1/2" (4 meters), interlock sightline of only 1" (25 mm) and frames embedded in the perimeter, allowing for a glazed surface of up to 94%. It has a maximum glazing capacity of 2 1/8" (54 mm), offering excellent thermal and acoustic performances. Available with manual up to 881 lb (400 kg) or motorized up to 1543 lb (700 kg) opening system. Additionally, accessibility is favoured by the possibility of hiding the rail and even integrating it fully into the floor.
Aluframe Vision Plus
Customize To Your Style
Now that you’ve selected your product, tailor each detail to your unique design
preferences. We’ll guide you every step of the way and help you make informed decisions so that your window or door looks and functions its best!
Colors & Finishes
Choose from five standard AAMA 2604 / 2605 colors or upgrade to a palette of 20 premium colors. Looking for something custom? We can color-match any shade.
.png)
System Details
Details
Maximum glazing
2 13/64" (56 mm)
Profile Section Size
Frame 2 Rails: 7 3/32"" (180 mm)Frame 3 Rails: 10 15/16"" (278 mm)Sash: 2 23/32"" (69 mm)
Profile thickness
5/64" (2 mm)
Thermal Break (Polyamide)
23/32" - 1 1/4" - 1 37/64" (18 - 32 - 40 mm)
Maximum dimensions/sash
Width (L) = 157 1/2"" (4000 mm) Height (H) = 157 1/2"" (4000 mm)
Maximum weight/sash
Manual 881 lb (400 kg)Motorized 1543 lb(700 kg)
Technical Data
Transmittance
Uw ≥ 0.16 Btu/h·ft2·°F (0.9 W/m²K)
Acoustic insulation
Rw up to 43 dB
