Aluframe Traditional Curtain Wall SG 52

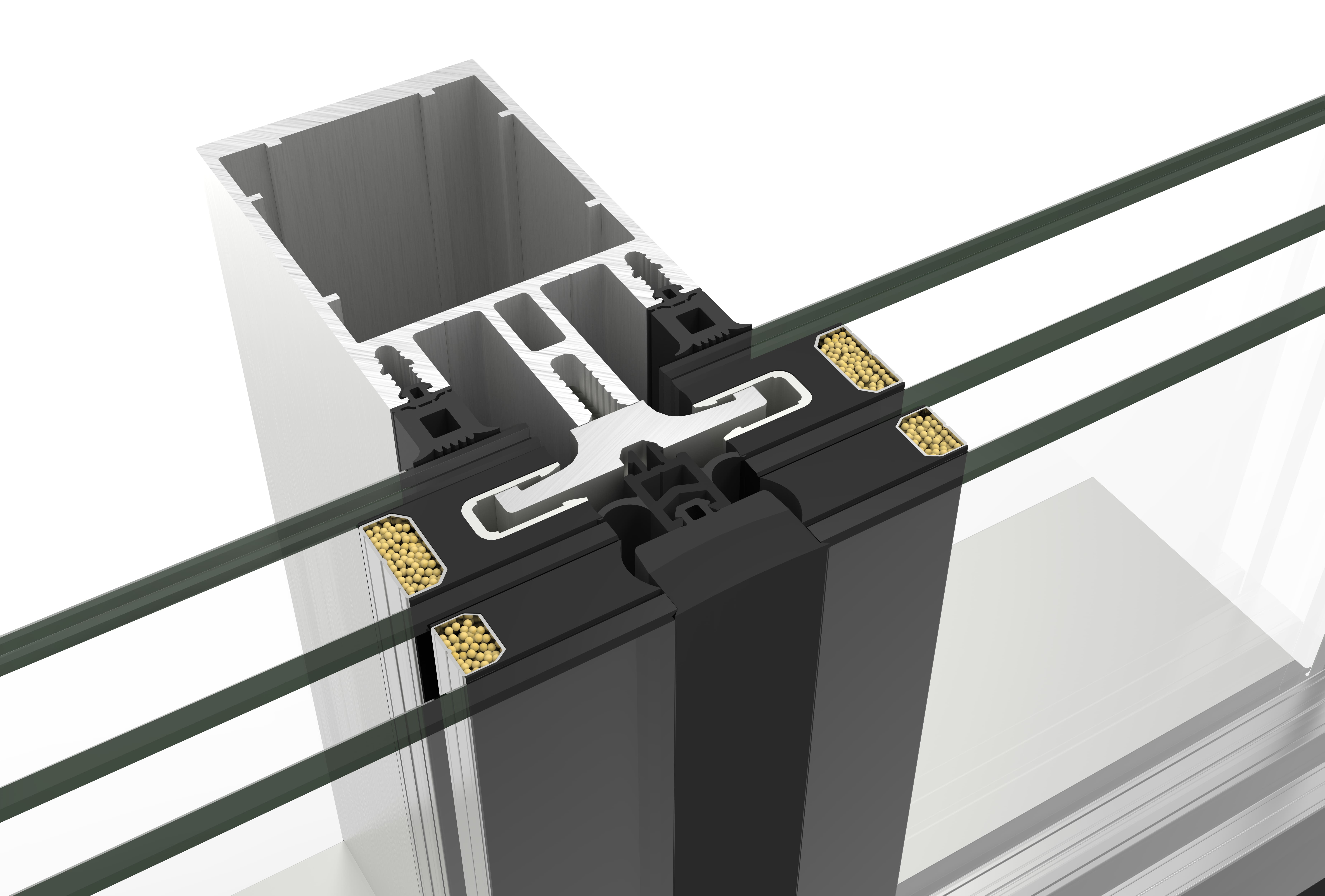

This SG 52 façade is a traditional system, also known as the Stick system. The fixing of the glazing to the supporting profiles is carried out by using clips. This system requires an insert that is fitted in to the glazing chamber (U profile). The combination of the clip and the insert allows the glass to fastened on all four sides. The large Thermal Break, combined with its ample glazing capacity of up to 2 1/2" (64 mm) with glass compositions of large thicknesses and energy efficiency, presents to this new range of facades excellent thermal and accoustic performance features. It has a “glass only” style on the exterior.
Aluframe Traditional Curtain Wall SG 52
Now that you’ve selected your product, tailor each detail to your unique design
preferences. We’ll guide you every step of the way and help you make informed decisions so that your window or door looks and functions its best!
Customize To Your Style
Colors & Finishes
Choose from five standard AAMA 2604 / 2605 colors or upgrade to a palette of 20 premium colors. Looking for something custom? We can color-match any shade.
.png)
System Details
Details
Maximum glazing
2 1/2" (64 mm)
Profile Section Size
Mullion: 2 3/64"" (52)Transom: 2 3/64"" (52)
Profile thickness
Mullion: 5/64"" - 1/8"" (2.1 - 3 mm)Transom: 5/64"" (2.1 mm)
Thermal Break (Polyamide)
15/64" - 15/32" - 1 3/16" ( 6 - 12 - 30 mm)
Technical Data
Transmittance
Uw ≥ 0.11 Btu/h·ft2·°F (0.6 W/m²K)
Acoustic insulation
Rw up to 40 dB
