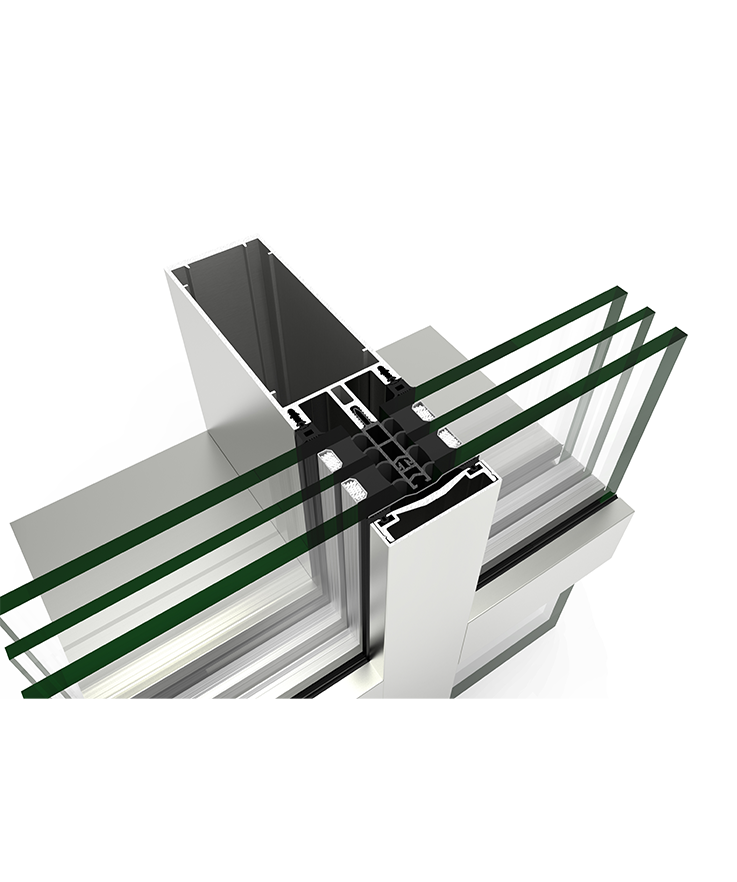

Aluframe Traditional Curtain Wall TP 62
This TP 62 façade is a traditional system, also known as the Stick system. The fixing of the glazing to the supporting profiles is carried out by way of a continuous pressure profile screwed externally to a screw port incorporated in the mullions and transoms. The glazing remains fixed at its 4 sides using this profile that is available with separating gaskets in order to impede contact between the glazing and the metal. The pressure profile and the screws are covered by a continuous external embellishing profile known as a cover. The large Thermal Break, combined with its ample glazing capacity of up to 2 1/2" (64 mm) with glass compositions of large thicknesses and energy efficiency, presents to this new range of façades excellent thermal and accoustic performance features. Its seen external section coincides with the interior, being 2 7/16" (62 mm)
Aluframe Traditional Curtain Wall TP 62
Now that you’ve selected your product, tailor each detail to your unique design
preferences. We’ll guide you every step of the way and help you make informed decisions so that your window or door looks and functions its best!
Customize To Your Style
Colors & Finishes
Choose from five standard AAMA 2604 / 2605 colors or upgrade to a palette of 20 premium colors. Looking for something custom? We can color-match any shade.
.png)
System Details
Details
Maximum glazing
2 1/2" (64 mm)
Profile Section Size
Mullion: 2 7/16"" (62 mm)Transom: 2 7/16"" (62 mm)
Profile thickness
Mullion: 5/64"" - 1/8"" (2.1 - 3 mm)Transom: 5/64"" (2.1 mm)
Thermal Break (Polyamide)
15/64" - 15/32" - 1 3/16" ( 6 - 12 - 30 mm)
Technical Data
Transmittance
Uw ≥ 0.11 Btu/h·ft2·°F (0.6 W/m²K)
Acoustic insulation
Rw up to 40 dB
Other
Curtain Wall
Aluframe Unitized Curtain Wall
Aluframe Traditional Curtain Wall TP 62
Aluframe Traditional Curtain Wall TP 52
.jpg)
Aluframe Traditional Curtain Wall SG 62
Aluframe Traditional Curtain Wall SG 52
Aluframe Equity Curtain Wall
